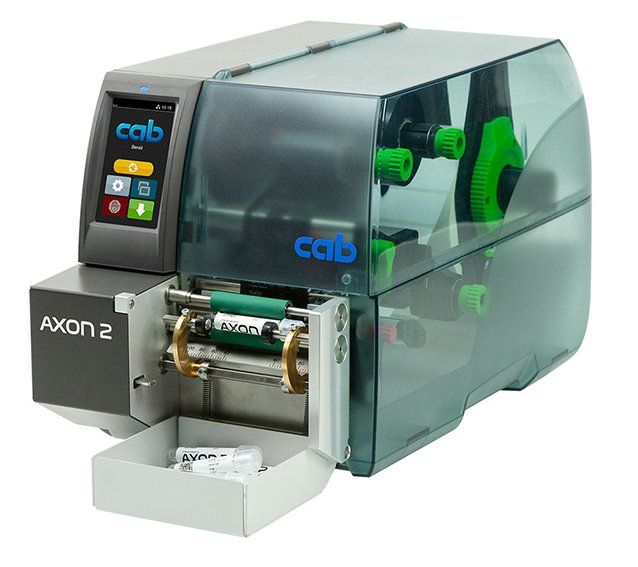

AXON 2

AXON has been designed for direct thermal and thermal transfer label printing. 300 dpi or 600 dpi print resolutions favor sharp-edge and high-contrast print images. The smallest codes and fonts can be verified reliably. A labeling cycle takes less than two seconds. Tubes and vials with or without a closure cap can be inserted by hand or automated by a handling system.

Symbols on the control panel support AXON be operated intuitively. Replacing a label roll or a ribbon is no big deal. In cases of cleaning or wear, print rollers and transport rollers are easy to remove using a tool attached. RS232, USB, Ethernet, WLAN and Bluetooth ensure data be transferred. AXON integrates to Laboratory Information Management Systems (LIMS).

Peel-off Plate - Adapted specifically to tubes and vial

TRV 14 transport roller (Ø 14 mm) - Labels are applied to tubes or vials of diameters 10 mm to 22 mm. By moving the roller along the shaft to specified positions, closure caps or protruding threads remain located beside the roller.

Pinch Rollers - Aligned according to the length of a tube or vial. Tubes or vials are pressed against the transport roller as labels are applied.

Swivel arms providing a stop - Axial setting according to the length of a tube or vial and the label position

Material replacement - Pivoting the applicator simplifies labels or ribbons be replaced.

Tray - Tubes or vials ejected automatically after printing are collected.
